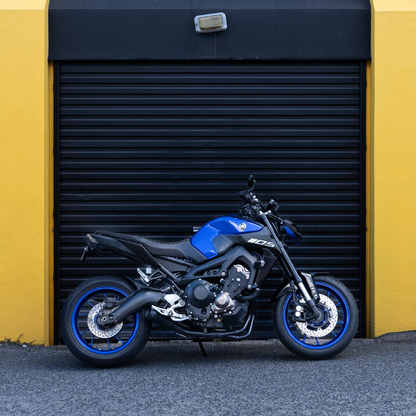

YAMAHA MT09 (2014-2020) FULL STAINLESS EXHAUST SYSTEM

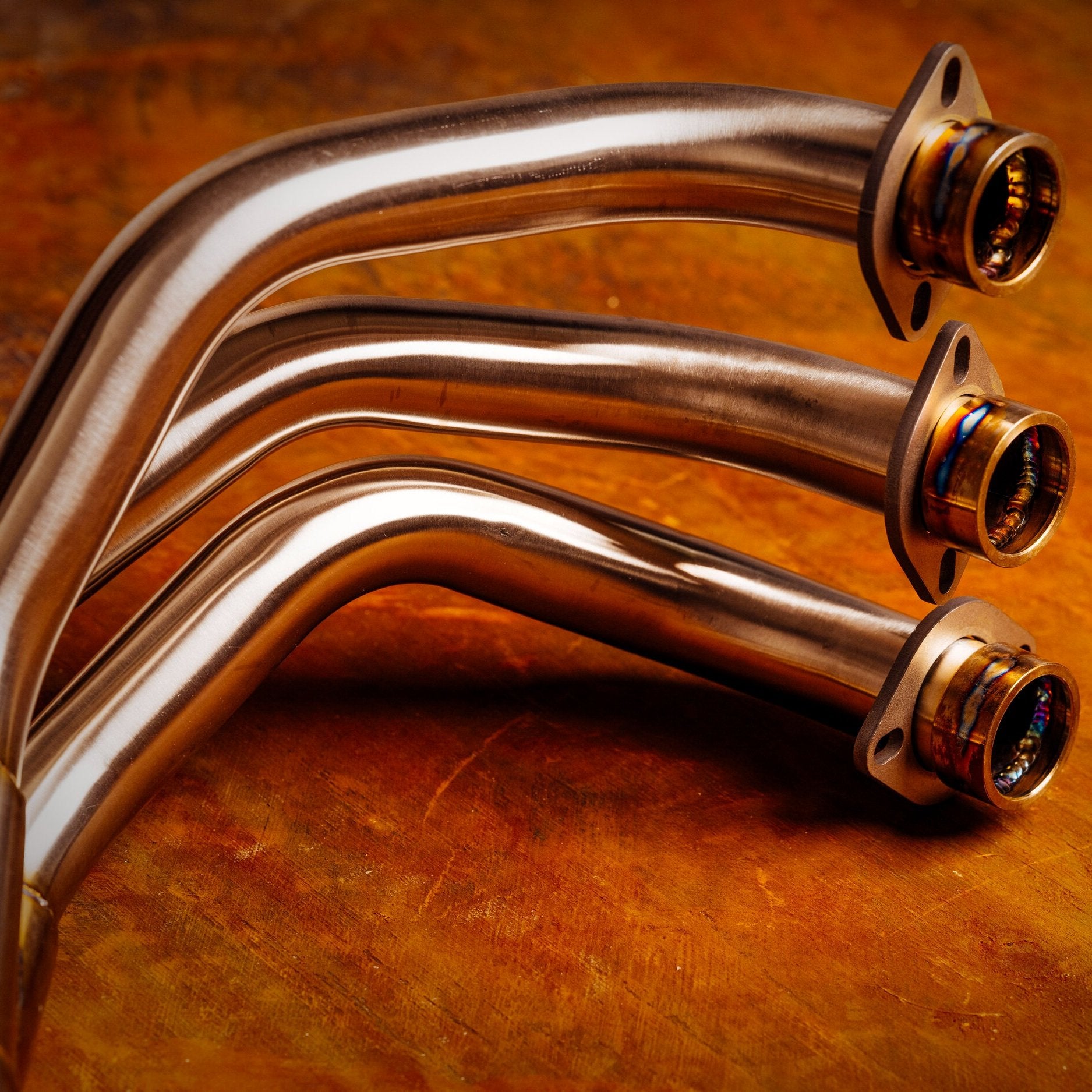

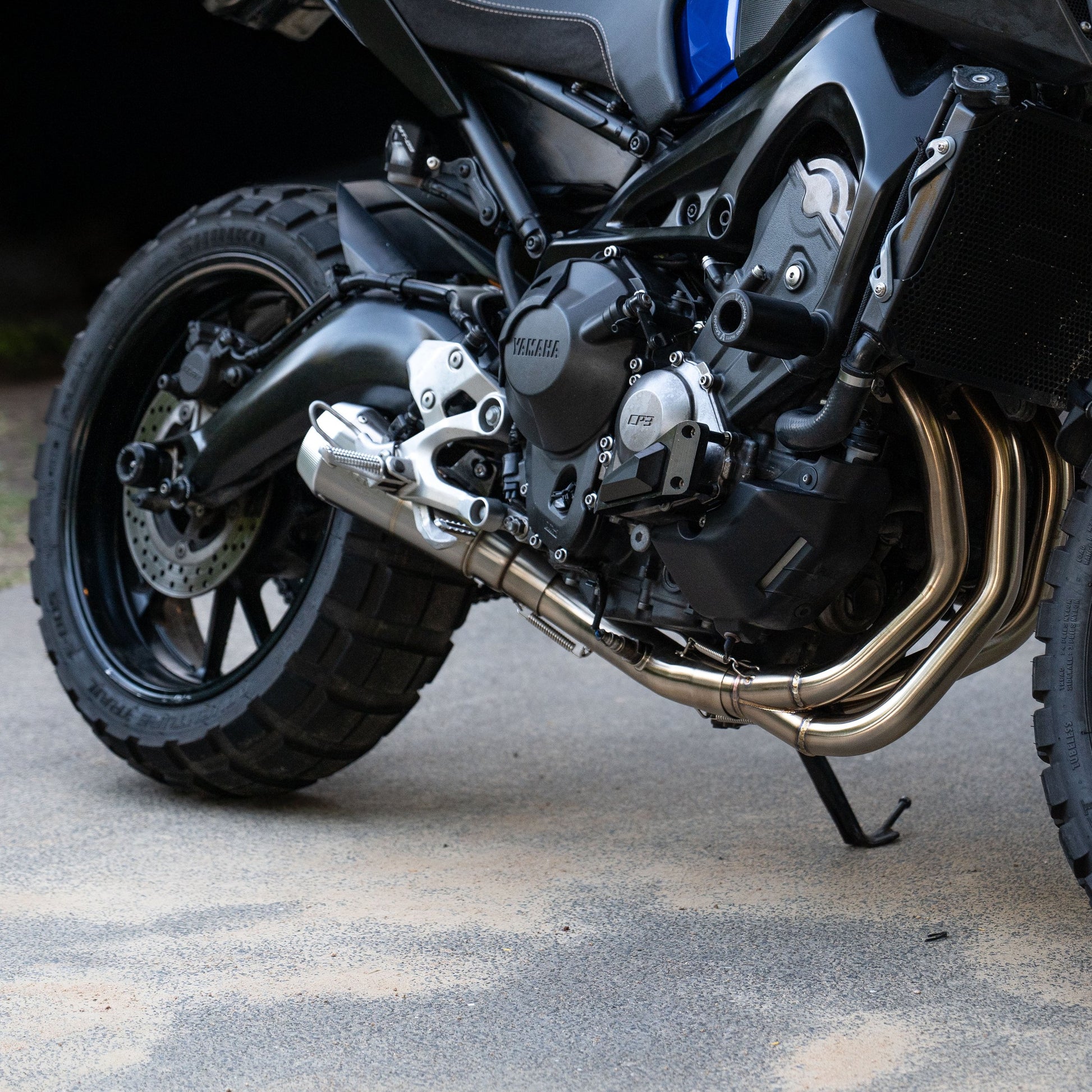

Few riders would call the first-generation Yamaha Crossplane 3 motor underpowered, but there's widespread agreement that its factory exhaust note lacks presence—often overpowered by the signature triple-cylinder induction whir. The Kelpi CP3 Full Exhaust System changes that. Crafted from TIG-welded 304 stainless steel, this system amplifies the bike’s character, boosts torque, and shaves roughly 4kg off the stock exhaust, depending on muffler selection. The long length 1.5” diameter individual headers provide a broad power band, merging seamlessly into a shorter style 2” link and muffler that tucks cleanly underneath the bike. By optimising exhaust flow, the character of the bike comes into its own, and you’ll notice power gains straight out of the box that can be enjoyed safely on stock fuel mapping.

Performance & Tuning

• Exhaust Flow & Power Gains – The CP3 exhaust allows for increased airflow, improving both midrange torque and top-end performance. Whilst every dyno gives slightly different numbers, we typically see 4-5hp gains over stock when running no baffle and stock tune, with a further 4-6hp that can be had once the fuelling has been optimised.


• Weight Reduction – Saves 3.8 - 4.2kg weight over stock (muffler dependant)


• ECU Tuning Recommendations – Our system runs safely on the stock tune, with particularly satisfying results across the rev and throttle range when using the included standard baffle. For absolute class-leading power across the rev range, an ECU reflash or custom dyno tune is generally recommended, especially when pairing with intake modifications that also increase airflow. We can recommend quality tuners across Australia and the USA that can provide these services reliably.

Customisation (Mufflers / Baffles / Cerakote)

Our CP3 exhaust system is available with multiple muffler and baffle configurations, allowing you to tailor the style, volume and exhaust note to match your preference.

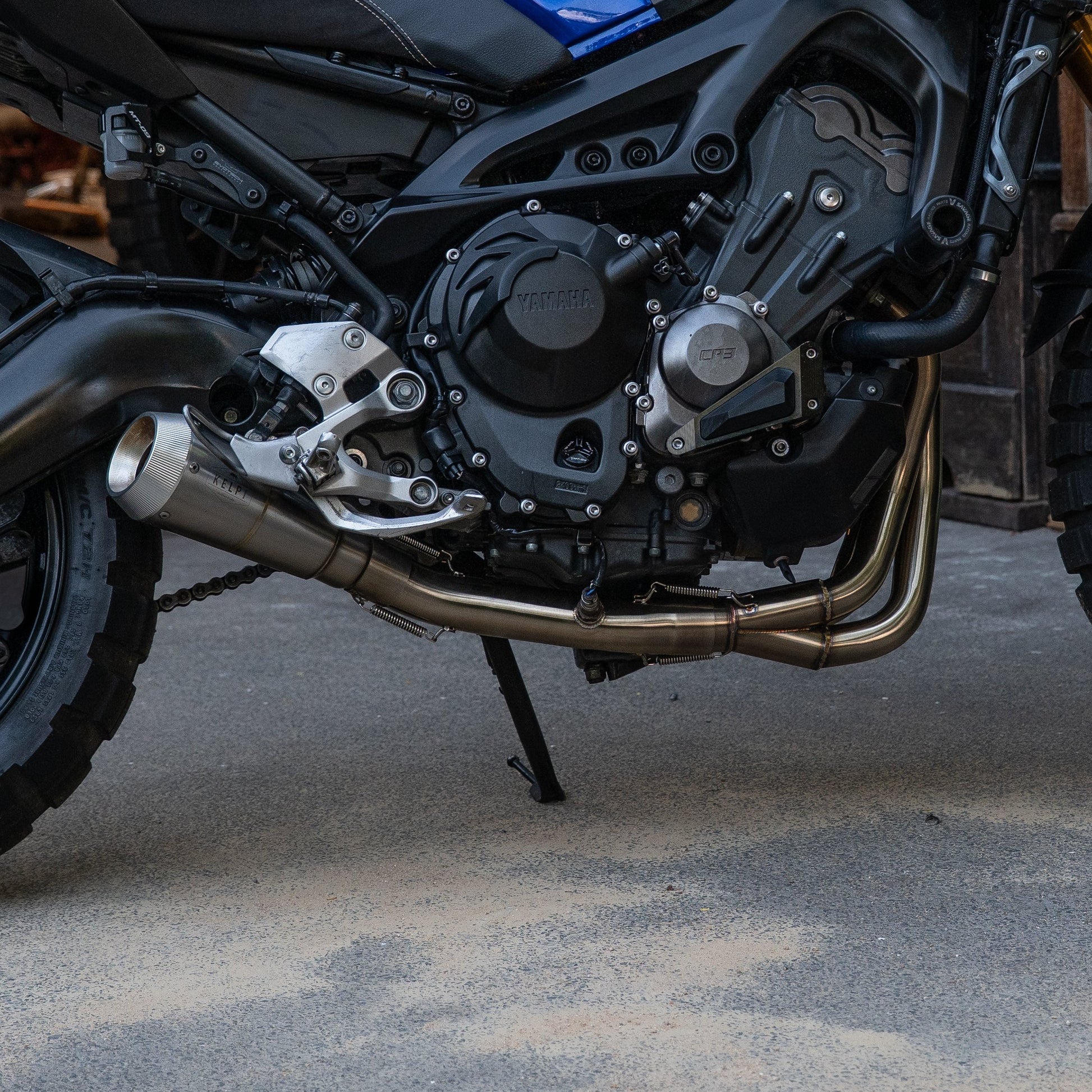

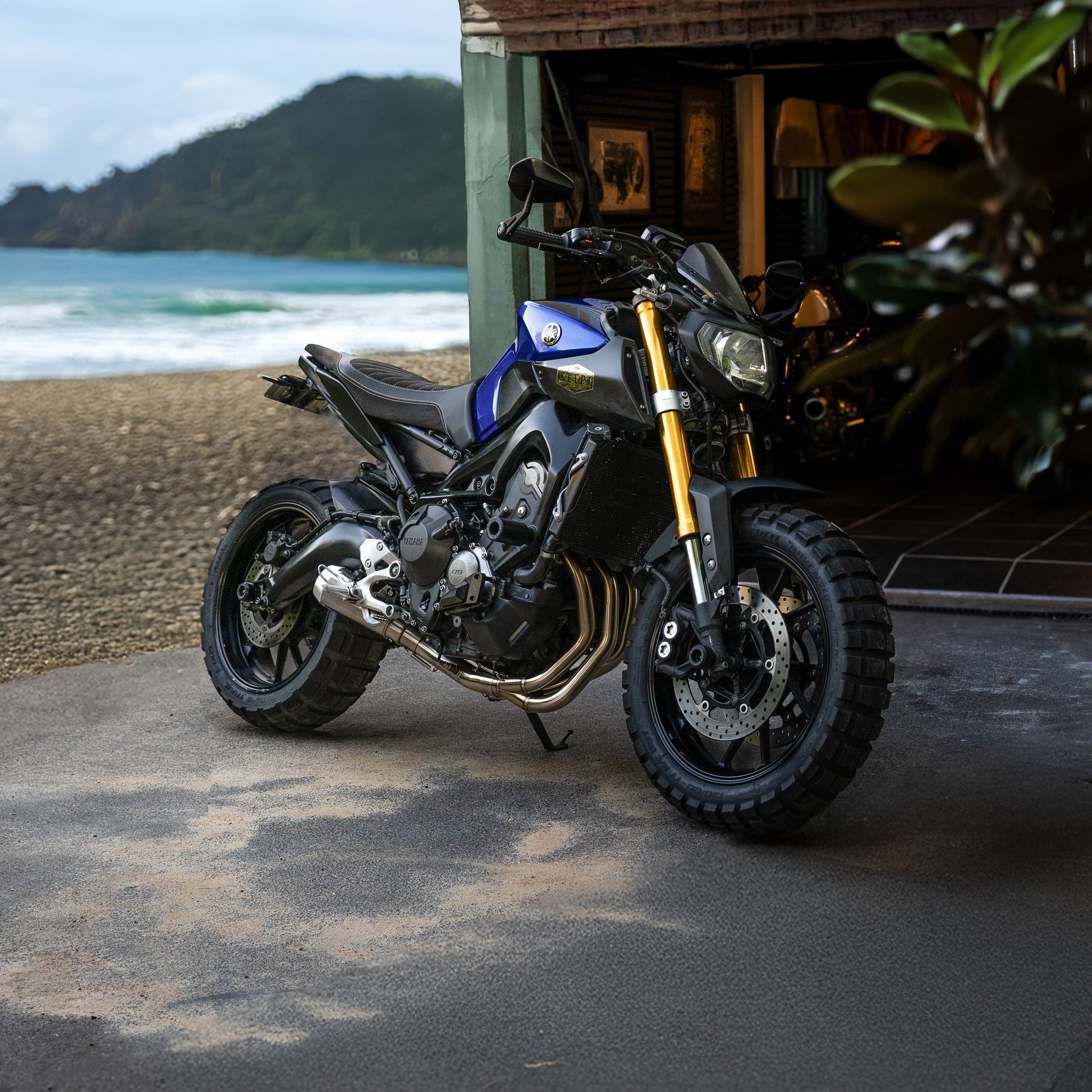

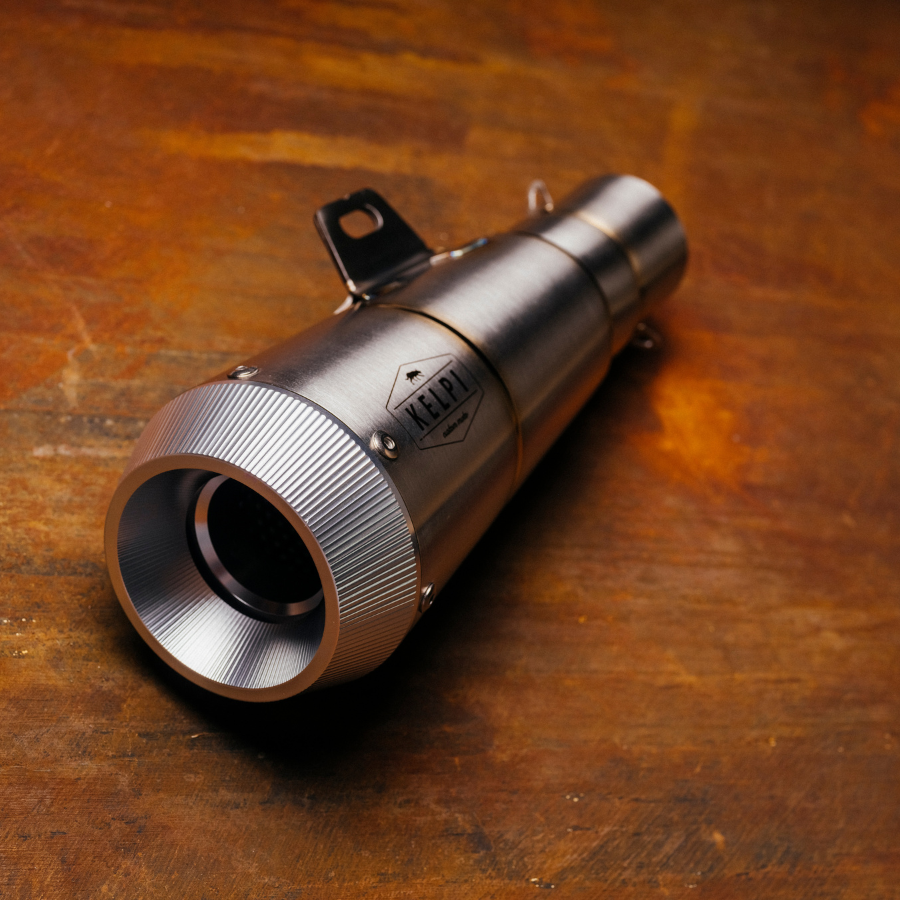

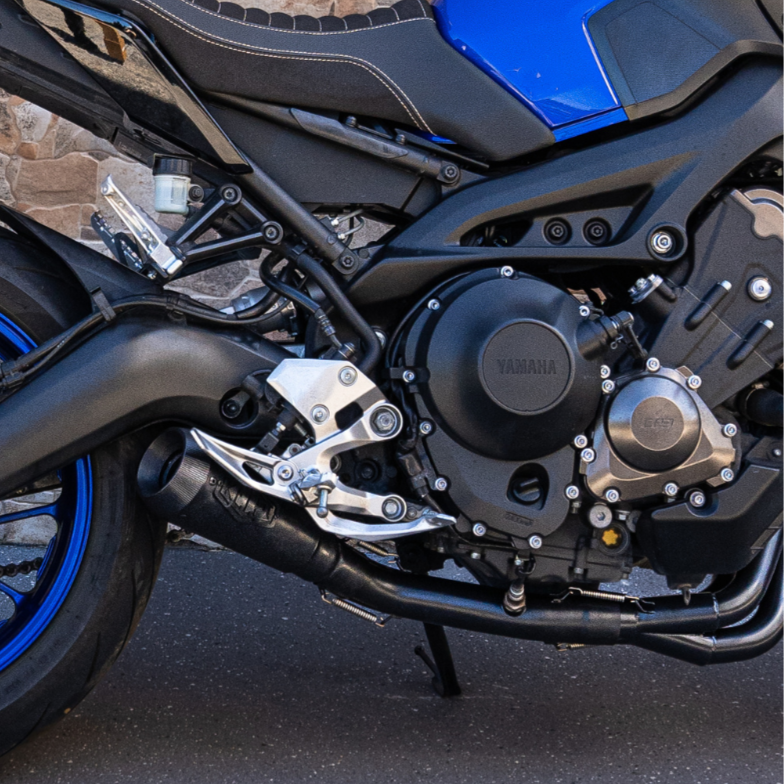

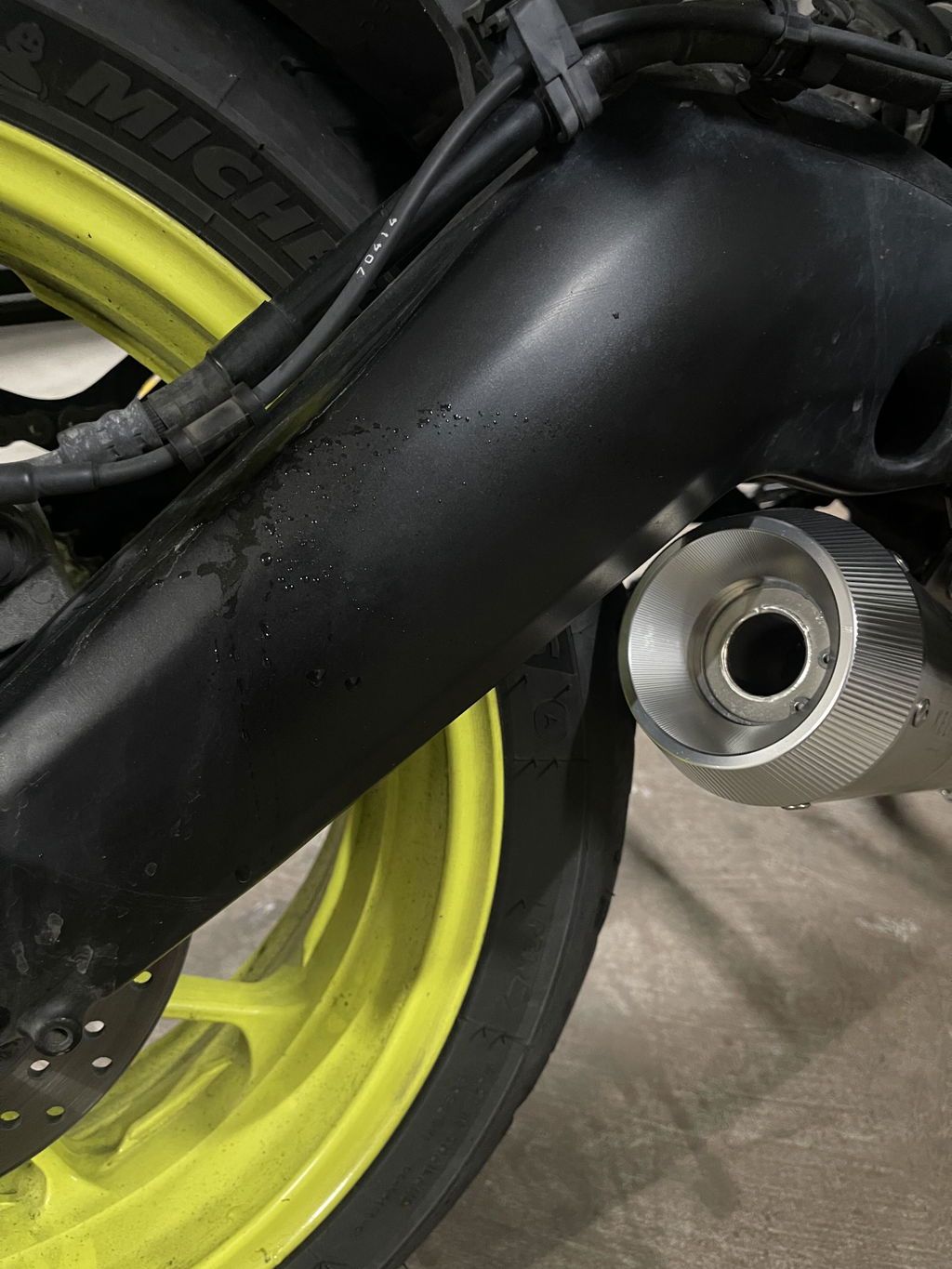

• Shorty Muffler: A reverse cone muffler with billet alloy end cap, classically styled with a signature low-mid resonant bark.

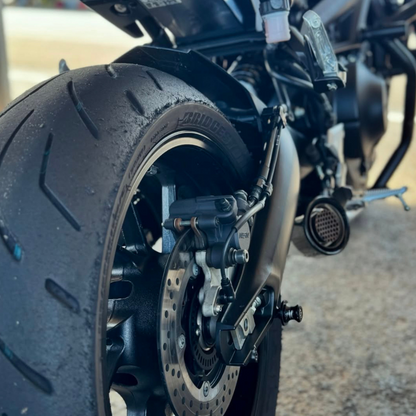

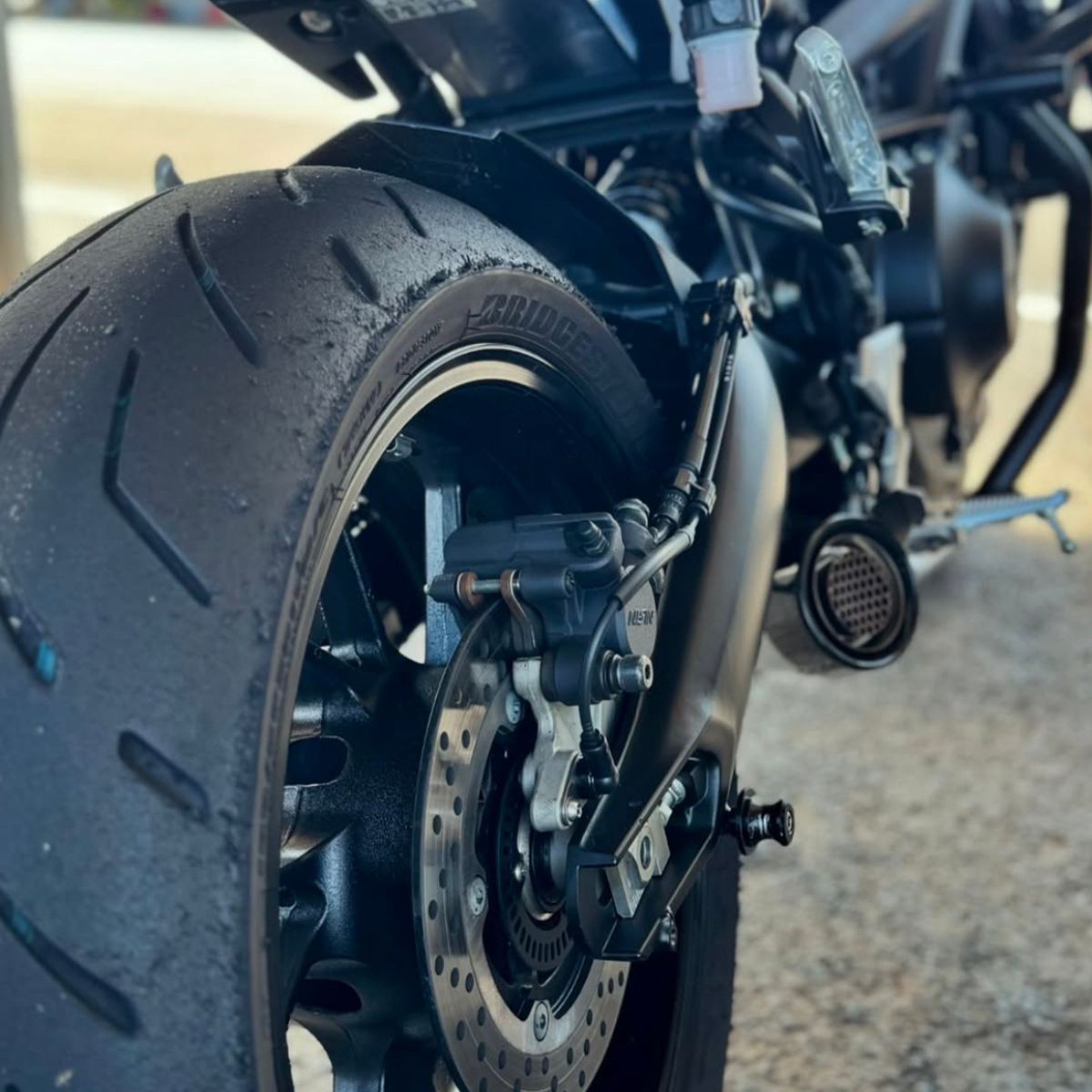

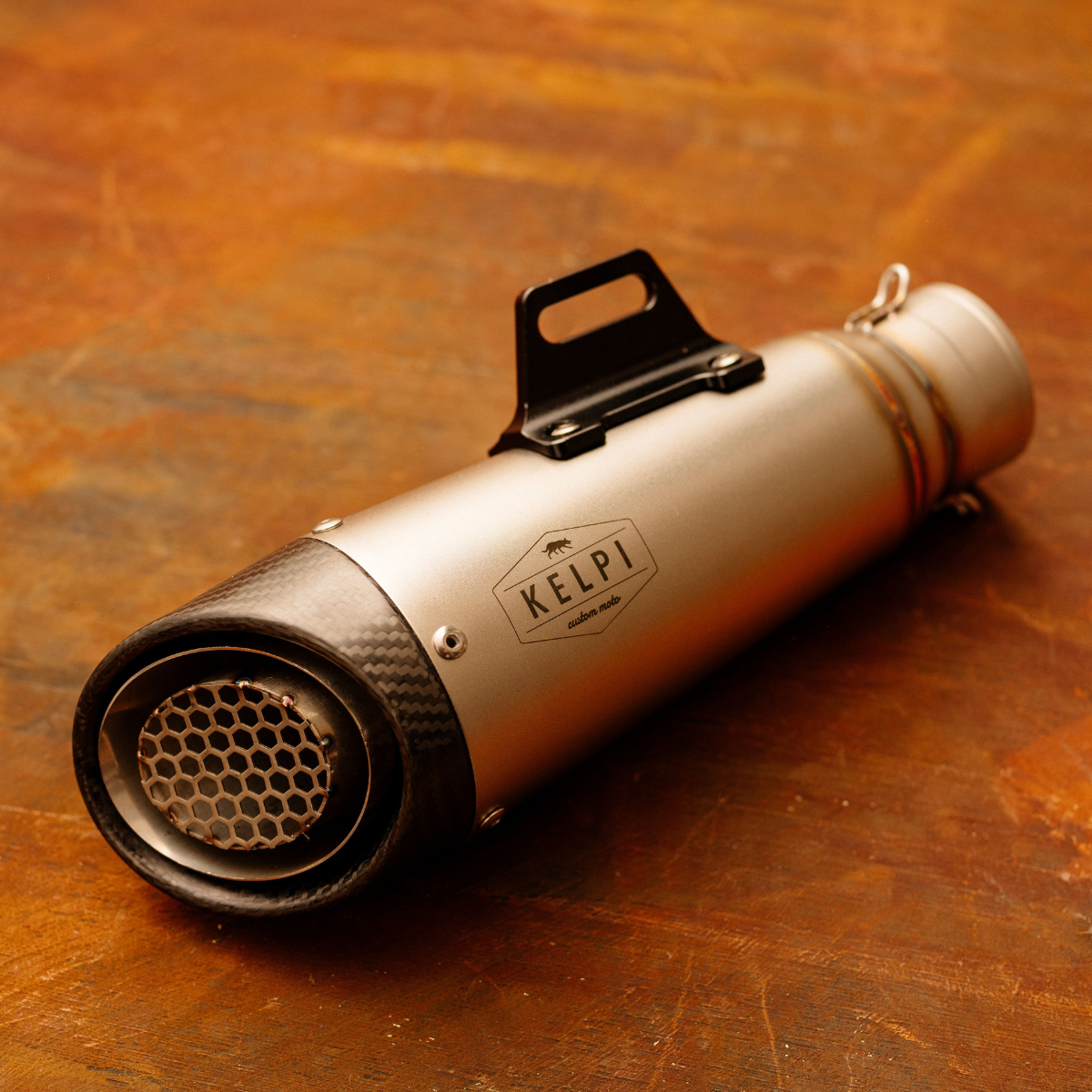

• Flanker Muffler: A modern, lightweight design featuring a carbon end cap and mesh grill, producing a deep burble that complements the CP3 triple sound.

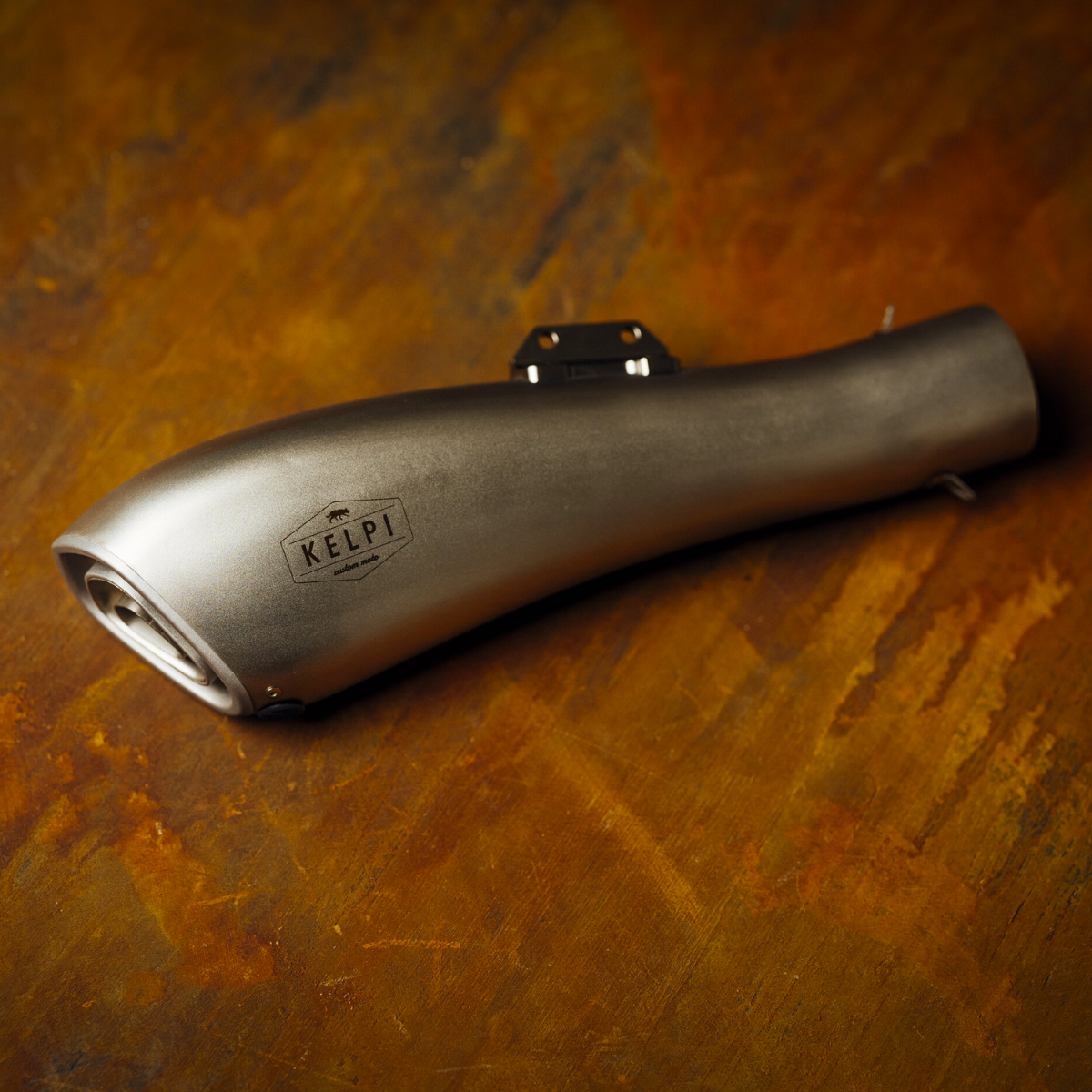

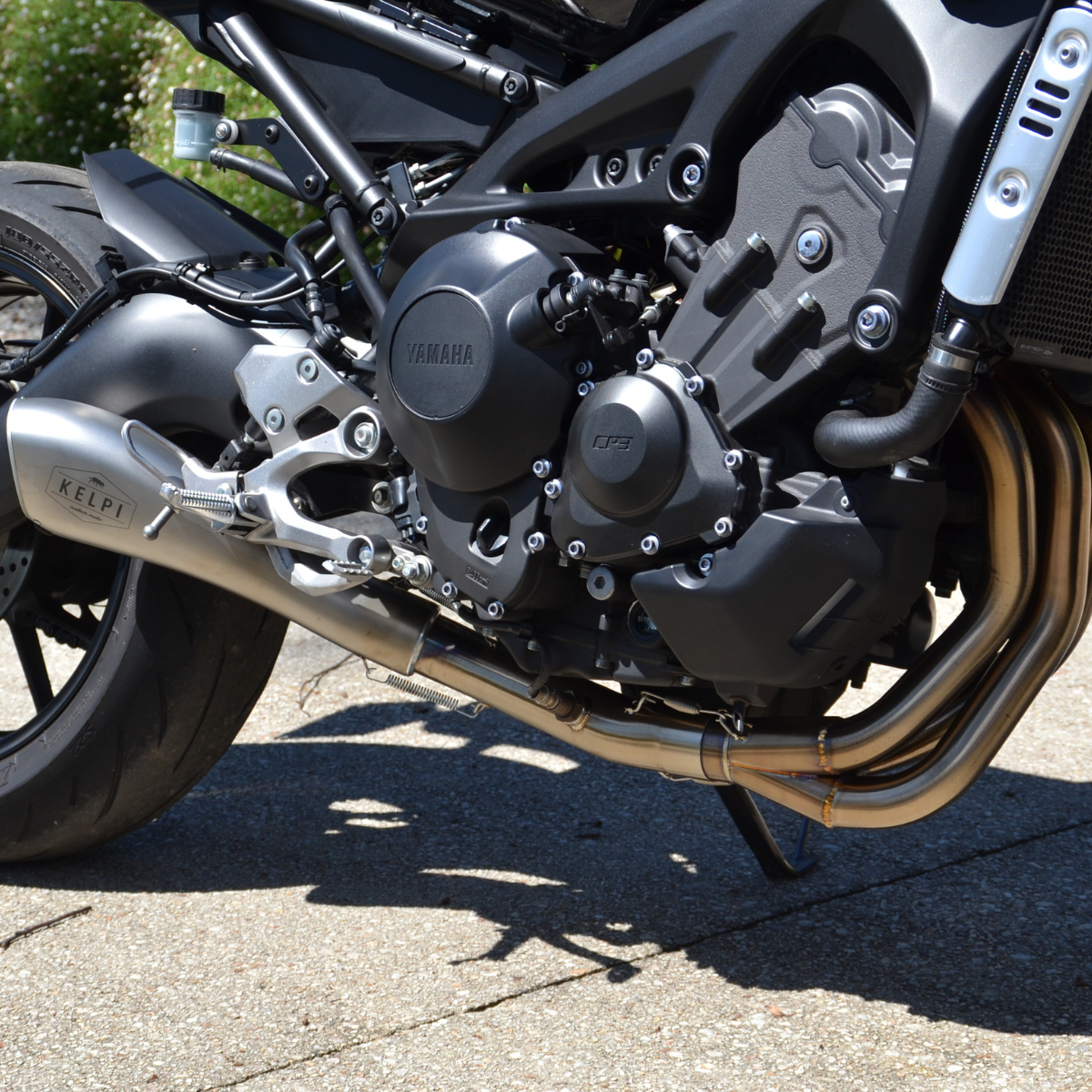

• Alpha Muffler: A longer hydroformed curved design, offering a more moderate volume and refined tone. Its quick-change end-cap baffle allows easy volume tuning, with four distinct volume levels.

Removable Baffle Options:

• Standard Baffle(included in all systems) – Lowers volume by a minimum 3dBwhile improving air fuel ratios on stock ECU map.
• Quietcore Baffle(optional extra) – Reduces volume by a further minimum 3dB at the expense of some top end at wide open throttle. Ideal for European / stricter roadworthy inspections and noise-sensitive environments, clients that select the Quietcore baffle will also receive the standard baffle, giving a minimum of three volumes to select between.

Optional Cerakoting Finishes (Shorty / Alpha Only):

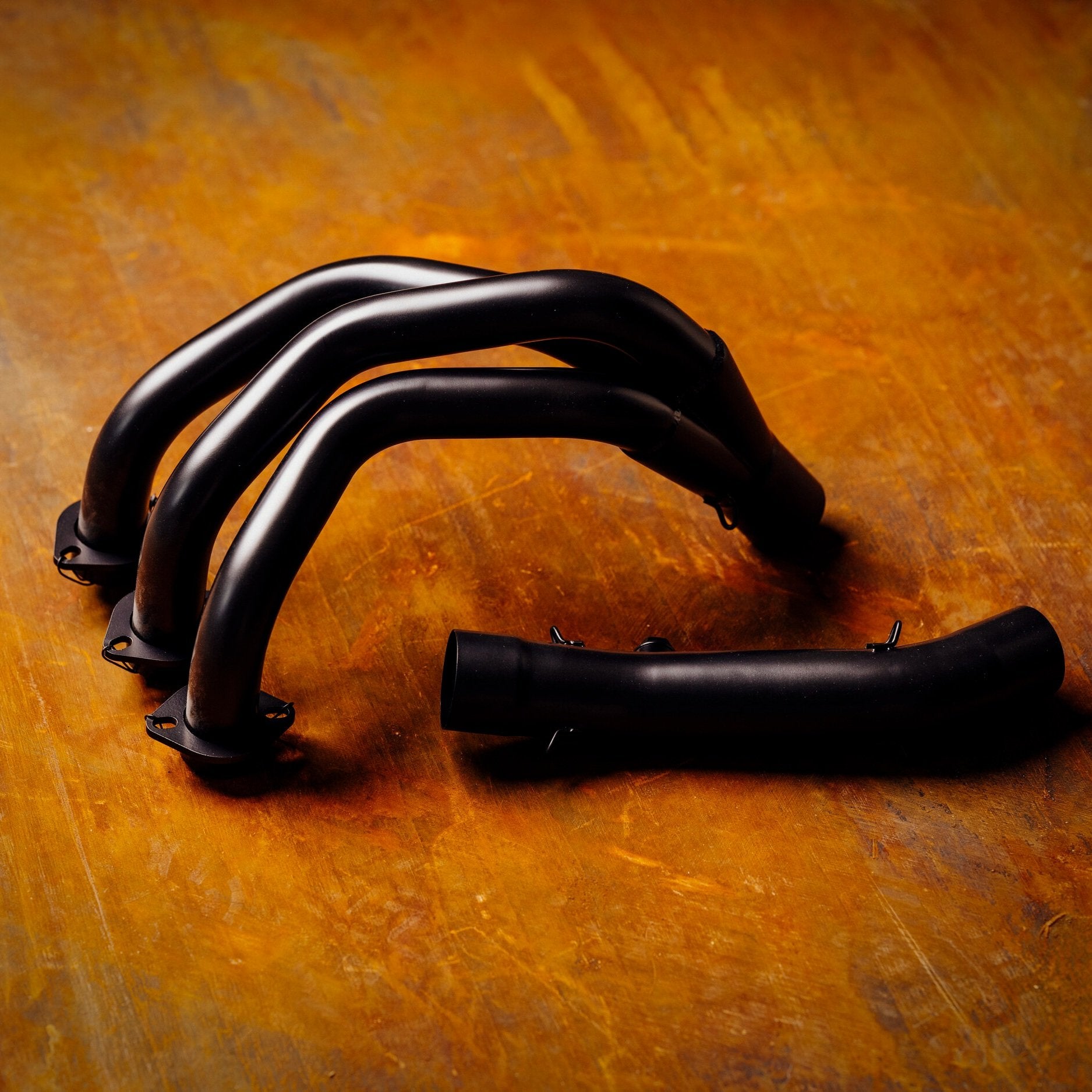

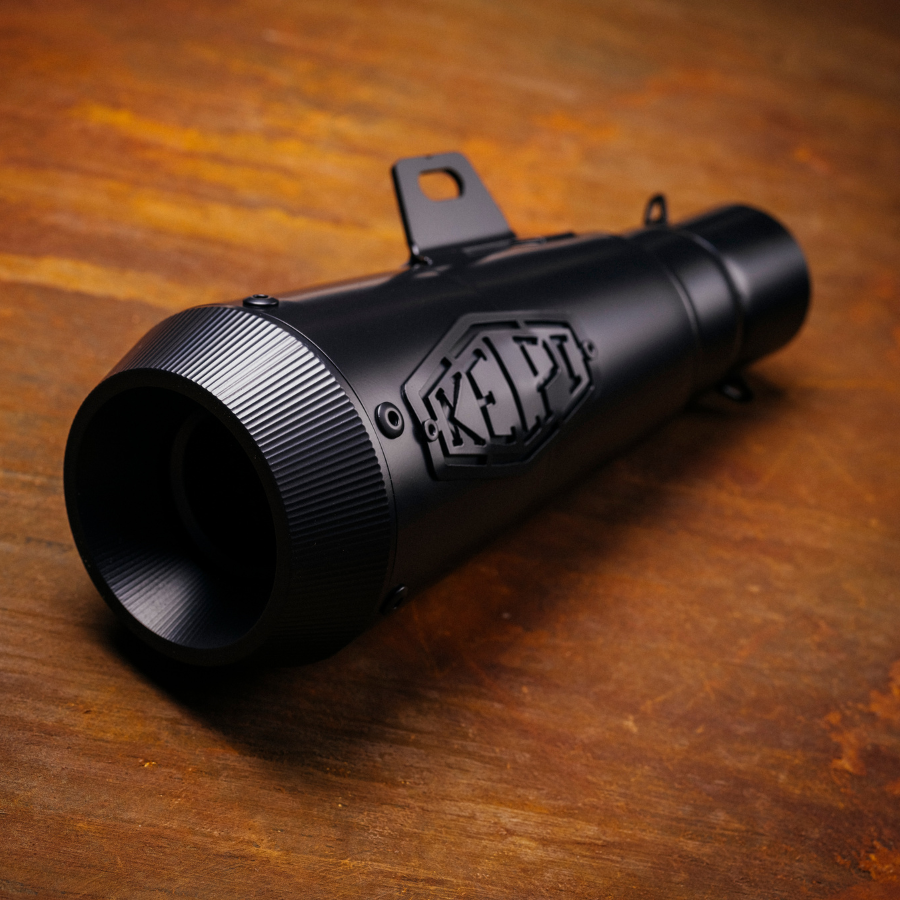

• Satin Black Cerakote

Fitment & Installation

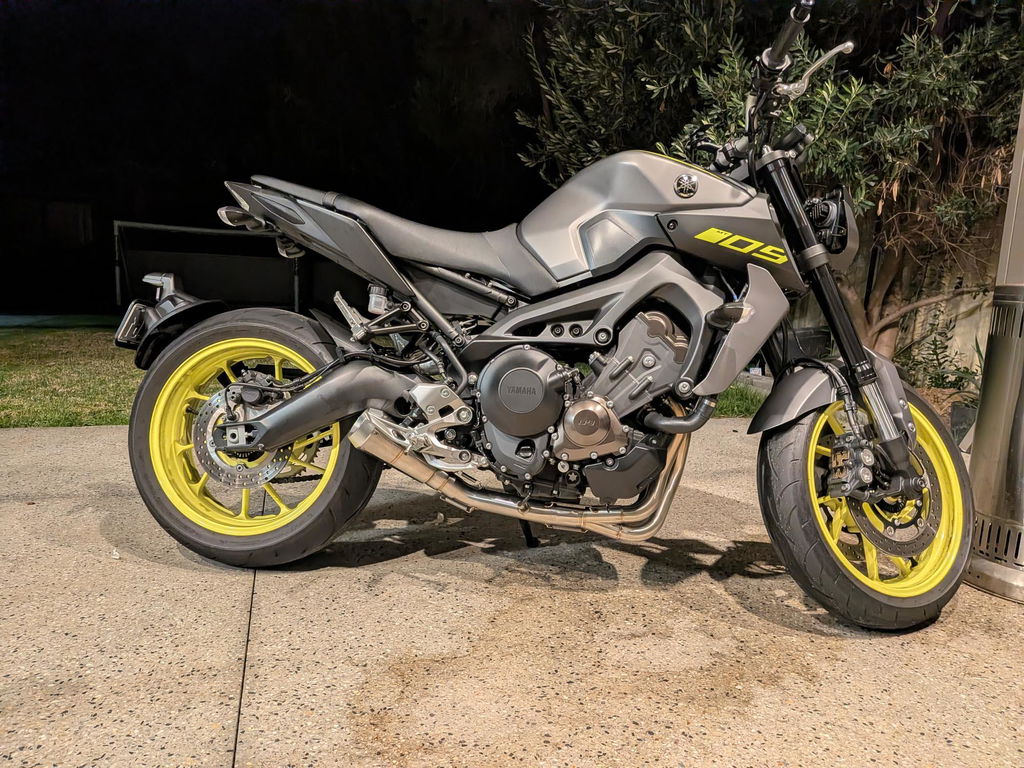

• Compatible with 1st Gen and 2nd Gen MT09 Models:

  • 2014–2020 MT09

  • 2016–2021 XSR900
  • Please note: Fitment for the Tracer 900 requires centre stand removal.
• Complete Exhaust System Includes:

  • Headers, link pipe, muffler, fasteners, springs, baffle/s, spring puller tool & hanger bracket.

• Simple Installation: Can be installed with basic hand tools in under an hour (HEX set, sockets, wrenches, etc.).

Full installation instructions can be found in the Additional Info tab.

Why Choose the Kelpi CP3 Exhaust?

• Striking Triple Soundtrack – Lets the CP3 engine’s signature burble shine over the factory induction noise.
• Performance Gains & Weight Savings – Increased airflow and torque, plus an average of 4kg less weight than stock.
• Multiple Muffler & Baffle Configurations – Customizable sound and styling to match your ride.
• Stock Tune Compatible, ECU Tune Recommended for Maximum Gains – Great out of the box, even better when optimised.
• Crafted from TIG-Welded 304 Stainless Steel – Durable, corrosion-resistant construction built to last.

Find the Right Setup for Your Ride

If you have any questions about fitment, custom finishes, or tuning options (after reading through our FAQs page), feel free to email or call us. We’re happy to guide you toward the best configuration for your bike and riding style.
